WINCH - IRONMAN MONSTER
PART NUMBER:
WINCH-WWB9500
PART NUMBER:
WINCH-WWB9500SR
PART NUMBER:
WINCH-WWB12000
PART NUMBER:
WINCH-WWB12000SR
Price:
$1,563.75 incl. GST
Price:
$1,859.00 incl. GST
Price:
$1,679.00 incl. GST
Price:
$1,956.15 incl. GST
Excludes freight and installation
Stock Level
Contact for Availability
Contact for Availability
Contact for Availability
Contact for Availability
Contact for Availability
WINCH - IRONMAN MONSTER 9500LB 12V - SYNTHETIC ROPE CABLE
SPECIFICATIONS
Motor5.5HP / 4.1KW
Power12VDC
Weight28kg
Wireless Remote Range30.5m
Remote Lead Length3.6m
Gear Train3 Stage Planetary
Gear Reduction Ratio265:1
BrakeAutomatic Camp Lock (In Drum)
Synthetic Rope Dimensions28m x 8mm
Overall Dimensions540mm (L) x 165mm (H) x 150mm (W)
Mounting Bolt Pattern254mm x 114.3mm
Notes
Minimum Battery for winching - 650CCA
SPECIFICATIONS
Motor5.5HP / 4.1KW
Power12VDC
Weight28kg
Wireless Remote Range30.5m
Remote Lead Length3.6m
Gear Train3 Stage Planetary
Gear Reduction Ratio265:1
BrakeAutomatic Camp Lock (In Drum)
Synthetic Rope Dimensions28m x 8mm
Overall Dimensions540mm (L) x 165mm (H) x 150mm (W)
Mounting Bolt Pattern254mm x 114.3mm
Notes
Minimum Battery for winching - 650CCA

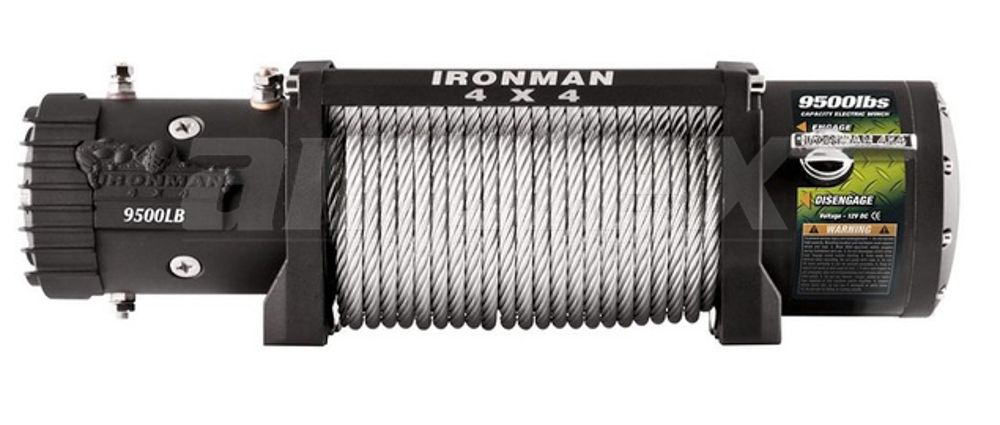

WINCH - IRONMAN MONSTER 9500LB 12V
SPECIFICATIONS
Power12VDC
Weight42kg
Wireless Remote Range30.5m
Remote Lead Length3.6m
Gear Train3 Stage Planetary
Gear Reduction Ratio265:1
BrakeAutomatic Camp Lock (In Drum)
Steel Cable Dimensions28m x 8.3mm
Overall Dimensions540mm (L) x 165mm (H) x 150mm (W)
Mounting Bolt Pattern254mm x 114.3mm
Notes
Minimum Battery for winching - 650CCA
SPECIFICATIONS
Power12VDC
Weight42kg
Wireless Remote Range30.5m
Remote Lead Length3.6m
Gear Train3 Stage Planetary
Gear Reduction Ratio265:1
BrakeAutomatic Camp Lock (In Drum)
Steel Cable Dimensions28m x 8.3mm
Overall Dimensions540mm (L) x 165mm (H) x 150mm (W)
Mounting Bolt Pattern254mm x 114.3mm
Notes
Minimum Battery for winching - 650CCA
WINCH - IRONMAN MONSTER 12000LB 12V - STEEL CABLE/ROPE
SPECIFICATIONS
Power12VDC
Weight44kg
Wireless Remote Range30.5m
Remote Lead Length3.6m
Gear Train3 Stage Planetary
Gear Reduction Ratio265:1
BrakeAutomatic Camp Lock (In Drum)
Steel Cable Dimensions28m x 9.5mm
Overall Dimensions540mm (L) x 165mm (H) x 150mm (W)
Mounting Bolt Pattern254mm x 114.3mm
Notes
Minimum Battery for winching - 650CCA
SPECIFICATIONS
Power12VDC
Weight44kg
Wireless Remote Range30.5m
Remote Lead Length3.6m
Gear Train3 Stage Planetary
Gear Reduction Ratio265:1
BrakeAutomatic Camp Lock (In Drum)
Steel Cable Dimensions28m x 9.5mm
Overall Dimensions540mm (L) x 165mm (H) x 150mm (W)
Mounting Bolt Pattern254mm x 114.3mm
Notes
Minimum Battery for winching - 650CCA

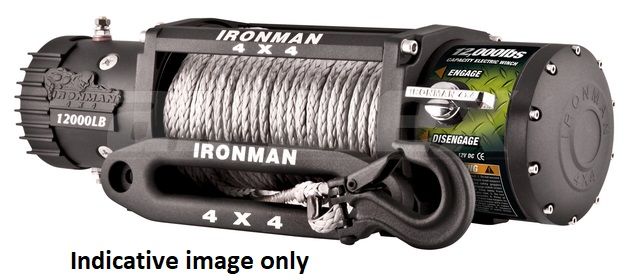

WINCH - IRONMAN MONSTER 12000LB 12V - SYNTHETIC ROPE / CABLE
SPECIFICATIONS
Series Woundtrue
Motor6.4HP / 4.5KW
Power12VDC
Weight29kg
Wireless Remote Range30.5m
Remote Lead Length3.6m
Gear Train3 Stage Planetary
Gear Reduction Ratio265:1
BrakeAutomatic Camp Lock (In Drum)
Synthetic Rope Dimensions28m x 9mm
Overall Dimensions540mm (L) x 165mm (H) x 150mm (W)
Mounting Bolt Pattern254mm x 114.3mm
Notes
Minimum Battery for winching - 650CCA
SPECIFICATIONS
Series Woundtrue
Motor6.4HP / 4.5KW
Power12VDC
Weight29kg
Wireless Remote Range30.5m
Remote Lead Length3.6m
Gear Train3 Stage Planetary
Gear Reduction Ratio265:1
BrakeAutomatic Camp Lock (In Drum)
Synthetic Rope Dimensions28m x 9mm
Overall Dimensions540mm (L) x 165mm (H) x 150mm (W)
Mounting Bolt Pattern254mm x 114.3mm
Notes
Minimum Battery for winching - 650CCA
