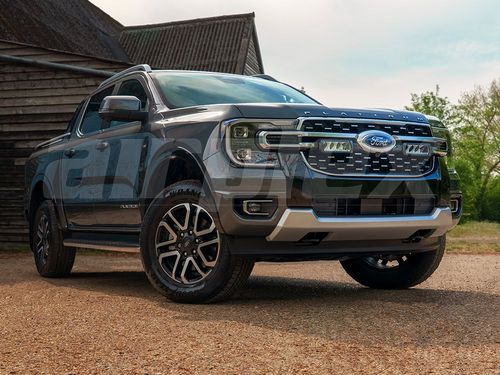

LAZER LIGHTS Ford Ranger Platinum (2024+) - Grille Mount Kit, 2x Triple-R 750, + Grille Mount + Wire
PART NUMBER:
GK-FR-ELITE-09K
PART NUMBER:
GK-FR-09K
Price:
$1,673.10 incl. GST
Price:
$1,385.46 incl. GST
Excludes freight and installation
Stock Level
Ford Ranger Platinum (2024+) - Grille Mount Kit (includes: 2x Triple-R 750, 1x Grille Mount Brackets, 1x Wiring Kit) / GRILLE KITS - CARS & PICK-UPS. Mount:N/A
Vehicle-specific brackets for seamless, OE-style grille integration
Tailored fit for Ford Ranger Platinum (2023+)
Designed for use with Triple-R 750 LED Lights
Includes precision-engineered brackets and a two-lamp wiring kit
Supplied with cutting guides and anti-theft fasteners for a secure and straight-forward install
Brackets manufactured from high-strength, UV-stable composite material
For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

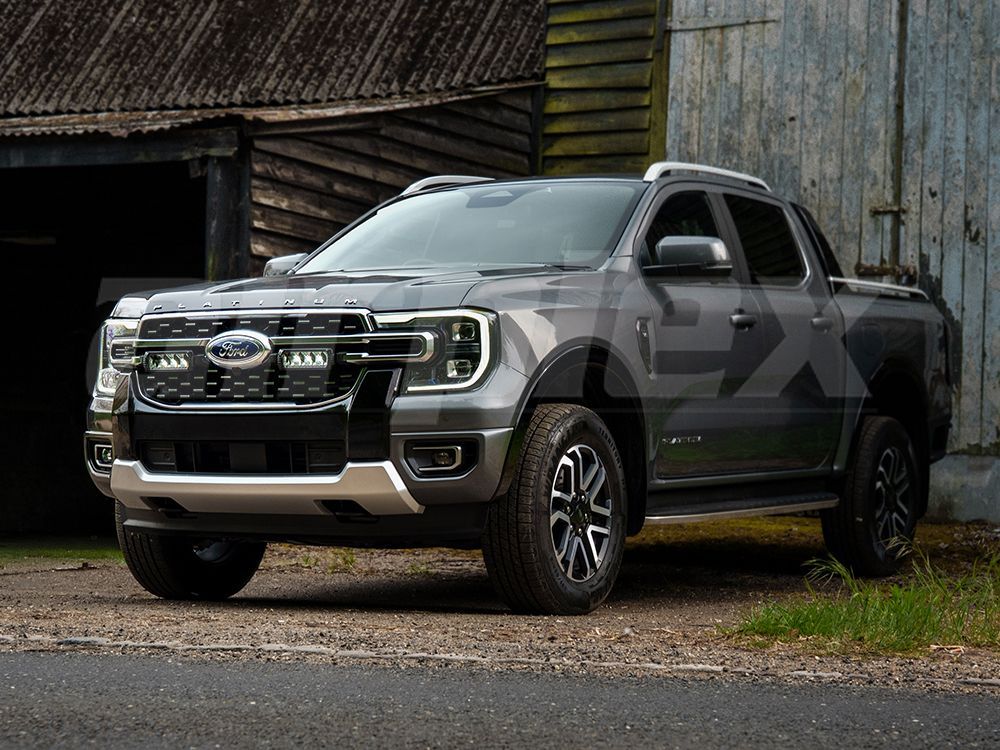

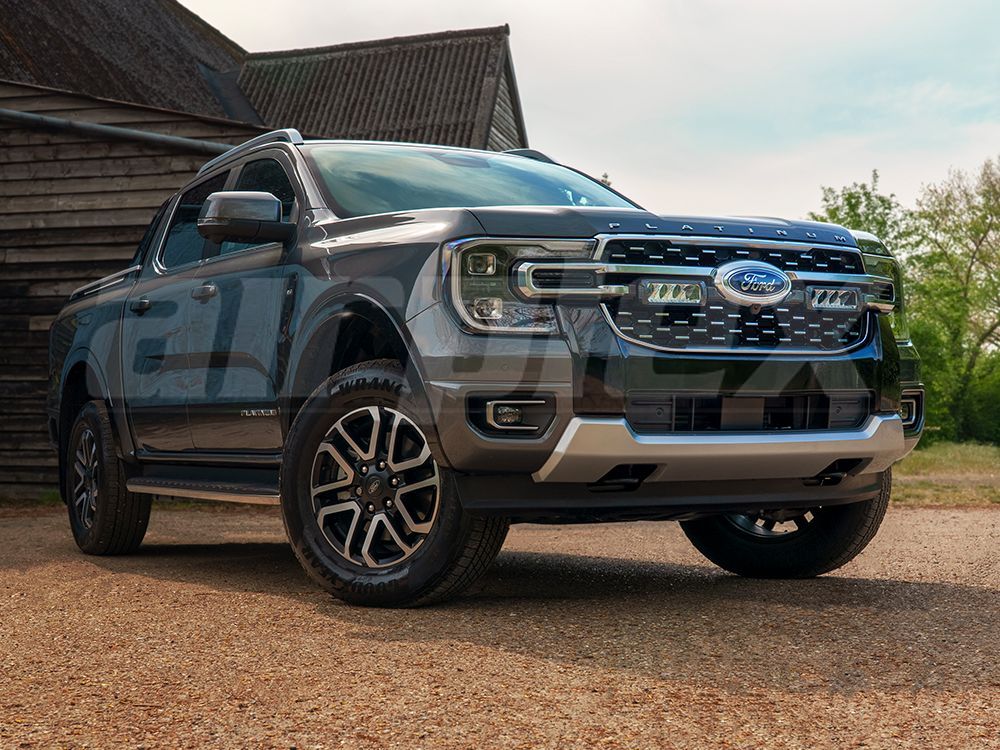

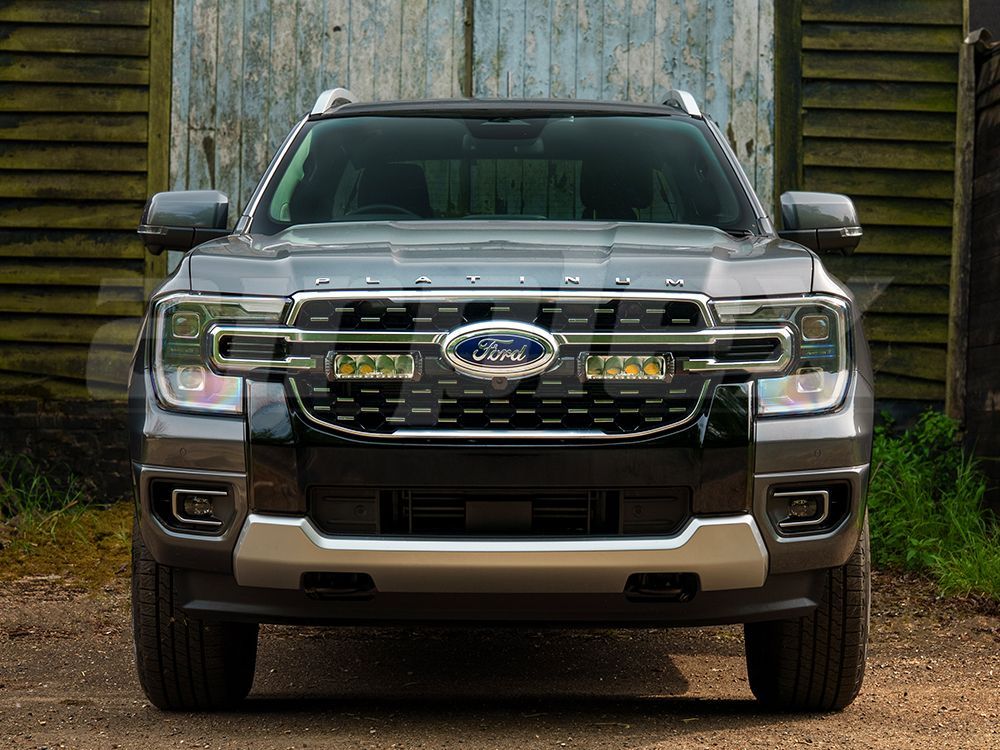

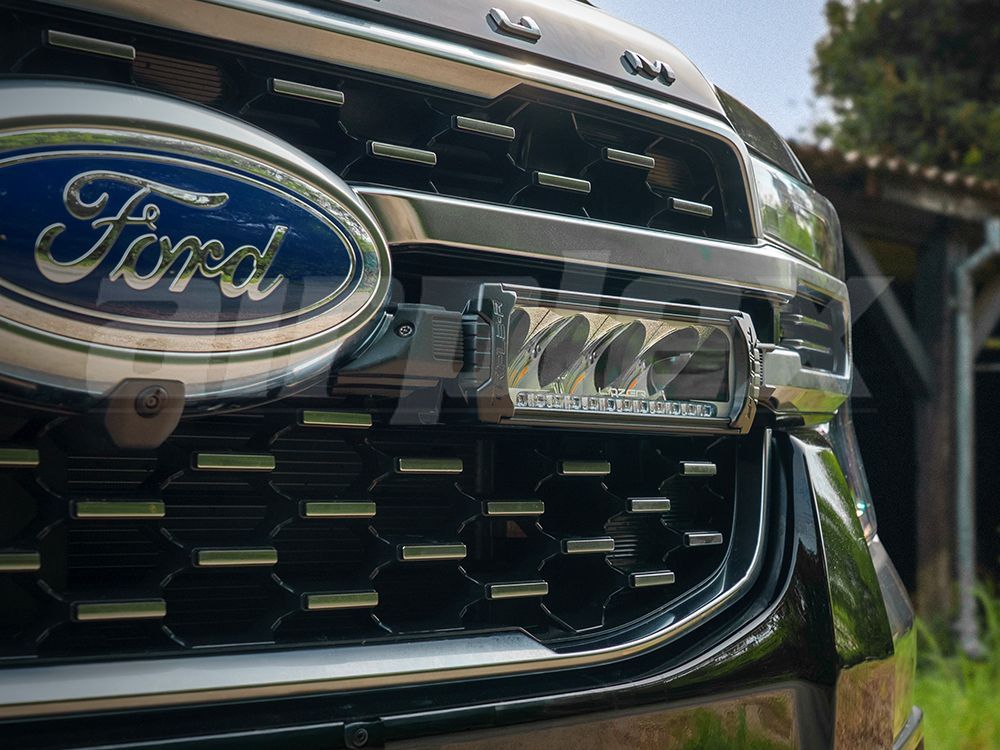

The Ford Ranger Platinum (2023+) Grille Kit, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from a composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
The Ford Ranger Platinum (2023+) Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface.
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 2.6 kg 2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm
10136 Lm
Total Driver 'FOV' Flux † 5572 Lm
Colour Temperature 5000K
Power Consumption 88 Watts
Current Draw (14.4V) 6.2 Amps
Connector 3-Pin Superseal
(+25cm Cable) 2-Pin Superseal
(+25cm Cable)
CERTIFICATION
IP Rating # IP68
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

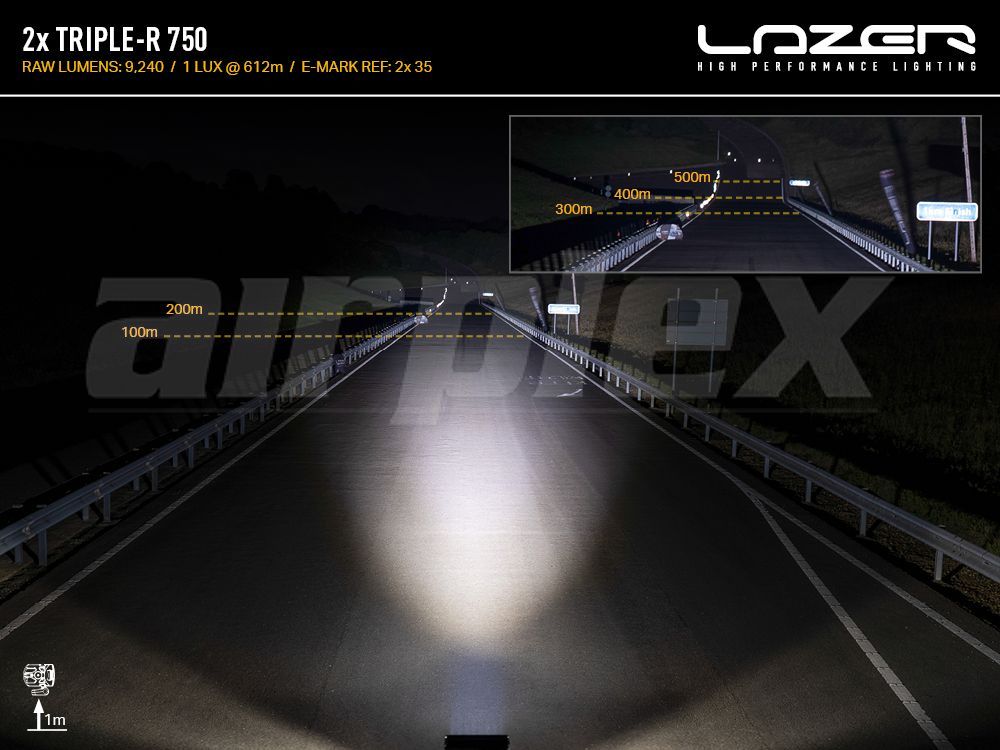

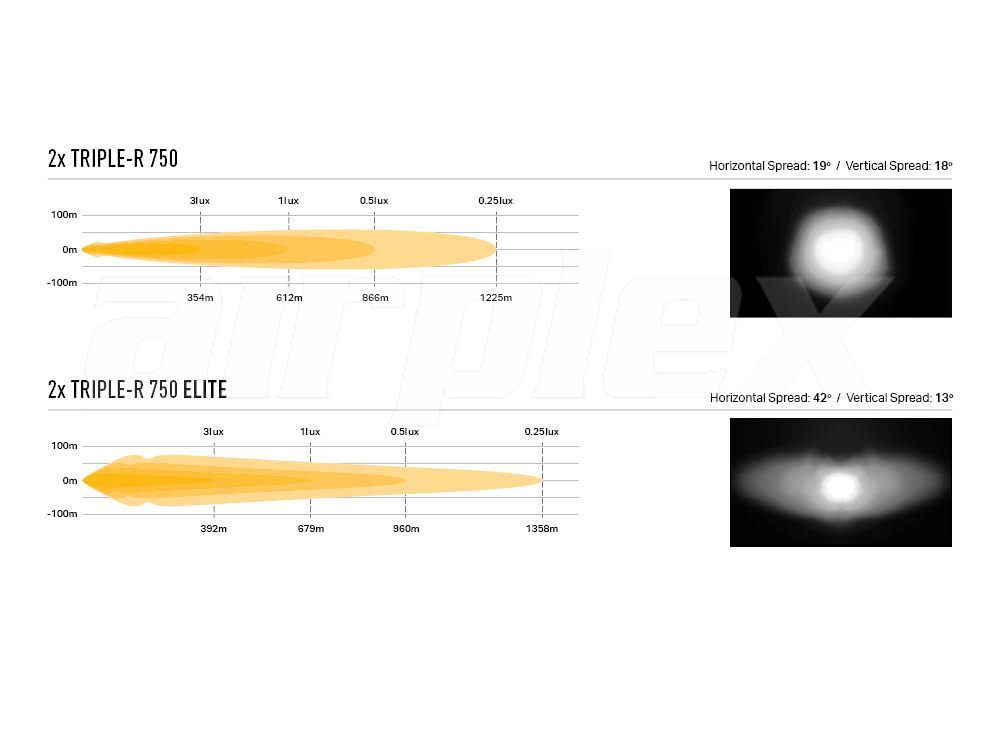

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 19° / 18°
0.25 Lux 1225m
0.5 Lux 866m
1 Lux 612m
3 Lux 354m
1x Grille Mounting Kit (Includes cutting guides)
2x Triple-R 750 LED Lamps
1x Two-Lamp Wiring Kit
Installation Instructions
Vehicle-specific brackets for seamless, OE-style grille integration
Tailored fit for Ford Ranger Platinum (2023+)
Designed for use with Triple-R 750 LED Lights
Includes precision-engineered brackets and a two-lamp wiring kit
Supplied with cutting guides and anti-theft fasteners for a secure and straight-forward install
Brackets manufactured from high-strength, UV-stable composite material
For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Ford Ranger Platinum (2023+) Grille Kit, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from a composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
The Ford Ranger Platinum (2023+) Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface.
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 2.6 kg 2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm
10136 Lm
Total Driver 'FOV' Flux † 5572 Lm
Colour Temperature 5000K
Power Consumption 88 Watts
Current Draw (14.4V) 6.2 Amps
Connector 3-Pin Superseal
(+25cm Cable) 2-Pin Superseal
(+25cm Cable)
CERTIFICATION
IP Rating # IP68
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2
PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 19° / 18°
0.25 Lux 1225m
0.5 Lux 866m
1 Lux 612m
3 Lux 354m
1x Grille Mounting Kit (Includes cutting guides)
2x Triple-R 750 LED Lamps
1x Two-Lamp Wiring Kit
Installation Instructions
Ford Ranger Platinum (2024+) - Grille Mount Kit
Includes:
2x Triple-R 750 Elite,
1x Grille Mount Brackets,
1x Wiring Kit
For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Ford Ranger Platinum (2023+) Grille Kit, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from a composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
The Ford Ranger Platinum (2023+) Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface.
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 2.6 kg 2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm
10136 Lm
Total Driver 'FOV' Flux † 6680 Lm
Colour Temperature 5000K
Power Consumption 104 Watts
Current Draw (14.4V) 7.2 Amps
Connector 3-Pin Superseal
(+25cm Cable) 2-Pin Superseal
(+25cm Cable)
CERTIFICATION
IP Rating # IP68
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

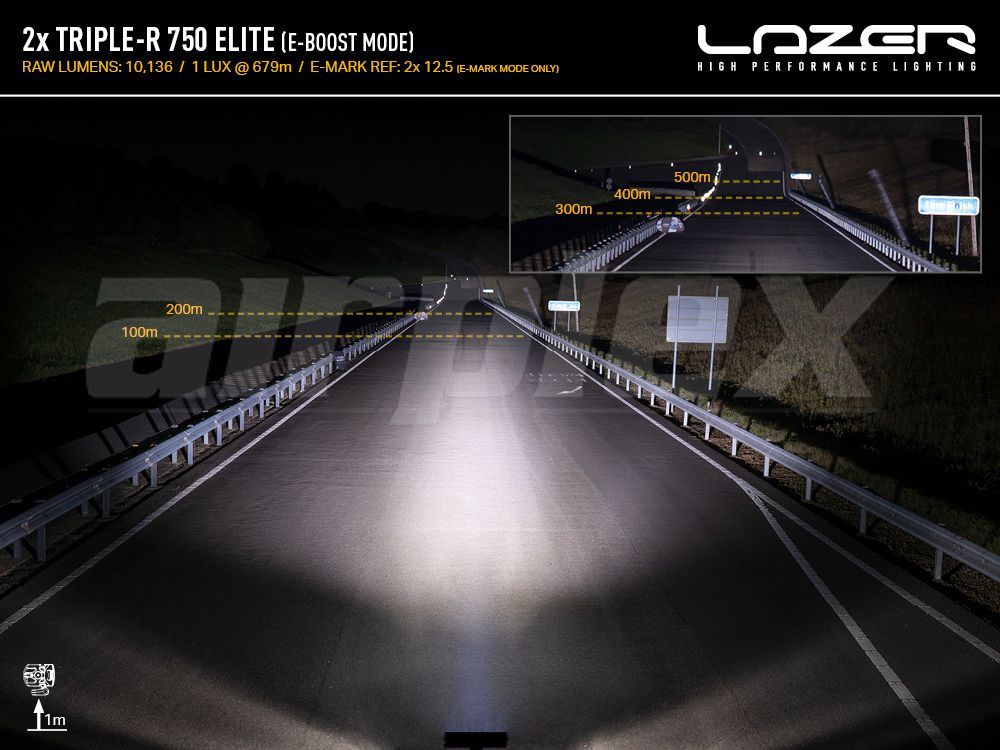

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 42° / 13°
0.25 Lux 1358m
0.5 Lux 960m
1 Lux 679m
3 Lux 392m
Includes:
2x Triple-R 750 Elite,
1x Grille Mount Brackets,
1x Wiring Kit
For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Ford Ranger Platinum (2023+) Grille Kit, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from a composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
The Ford Ranger Platinum (2023+) Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface.
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 2.6 kg 2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm
10136 Lm
Total Driver 'FOV' Flux † 6680 Lm
Colour Temperature 5000K
Power Consumption 104 Watts
Current Draw (14.4V) 7.2 Amps
Connector 3-Pin Superseal
(+25cm Cable) 2-Pin Superseal
(+25cm Cable)
CERTIFICATION
IP Rating # IP68
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2
PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 42° / 13°
0.25 Lux 1358m
0.5 Lux 960m
1 Lux 679m
3 Lux 392m
