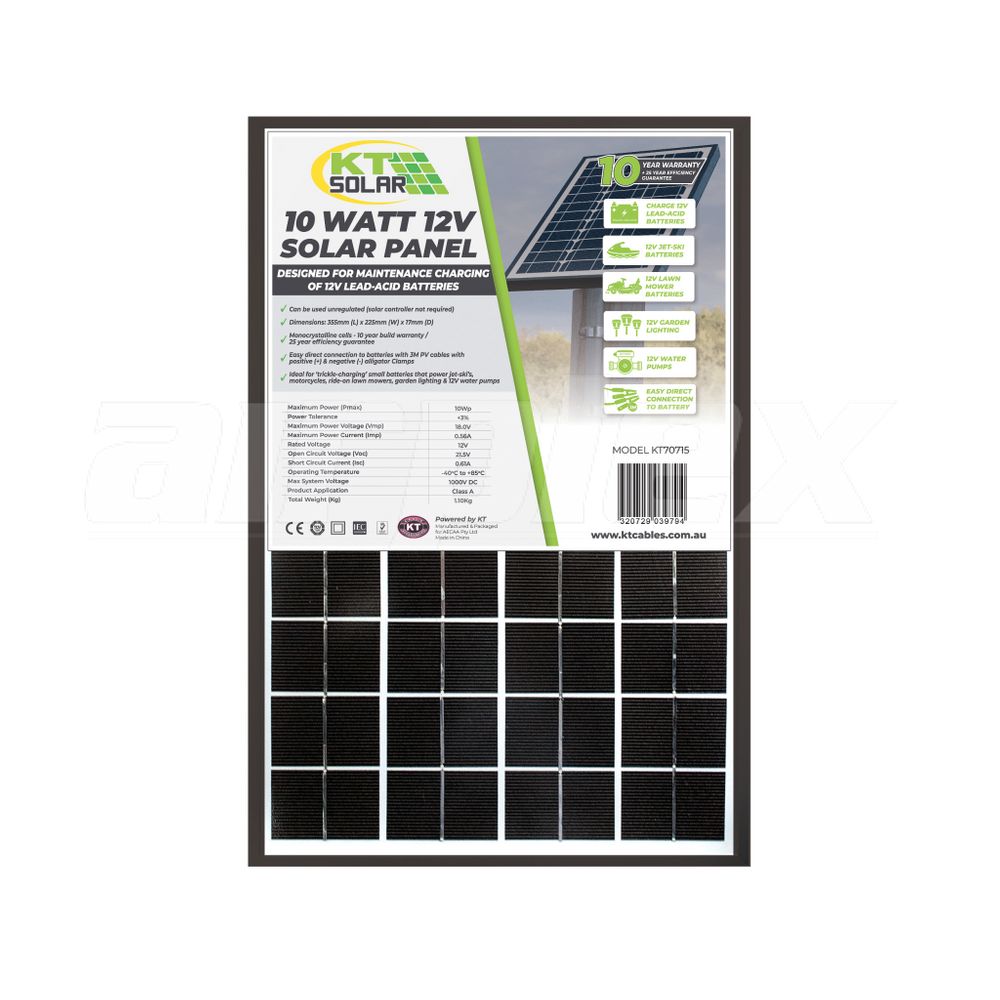

SOLAR PANEL - 10 Watt, 12V Single Cell Mono-crystalline Solar Panel
Excludes freight and installation
Description
Designed for maintenance charging (trickle-charging) of 12V lead-acid batteries that power garden lighting & 12V water pumps, jet-ski batteries, moped batteries, motorcycle batteries & lawn mower batteries.
Can be used unregulated (without solar charge controller).
Easy direct connection to batteries with 3M PV cables with positive
( + ) & negative ( – ) alligator clamps.
Specifications:
Power Tolerance +3%
Maximum Power (Pmax) 10Wp
Maximum Power Voltage (Vmp) 18.0V
Maximum Power Current (Imp) 0.56A
Rated Voltage 12V
Open Circuit Voltage (Voc) 21.5V
Short Circuit Current (Isc) 0.61A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 1000V DC
Dimensions & Weight:
Dimensions (Height): 355mm
Dimensions (Length): 225mm
Dimensions (Depth): 17mm
Panel Weight: 1.10Kg
KT Cables 12 Solar Panels are compact and efficient solutions for maintaining stored batteries, and are great for use in applications where 240V power is not easily accessible. These units are Class A certified and come with a 10 year warranty and 25 year effectiveness guarantee - individually barcoded and registered through the manufacturer so you can rest assured you're taking home a quality product.
This 10 watt model is completely waterproof, and makes a great charging and maintenance source for small lead-acid batteries that power surveillance, small garden and lighting equipment. Produced autonomously in KT's world class facilities, these high efficiency mono-crystalline solar charger panels are fantastic for stationary and on-the-go applications.
Features
Suitable for maintaining small batteries powering garden lighting, surveillance and other accessories
High efficiency mono-crystalline waterproof construction with premium black framing
10 Year Warranty with individual barcode for recording of warranty registration
25 year efficiency guarantee for long lasting reassurance
Class A accredited: Free of visual defects with cell output measured to ensure quality
