LAZER LIGHTS Carbon-6 SPOT (Gen3)
Approx. lead time of 7 business days applies to this item
Description

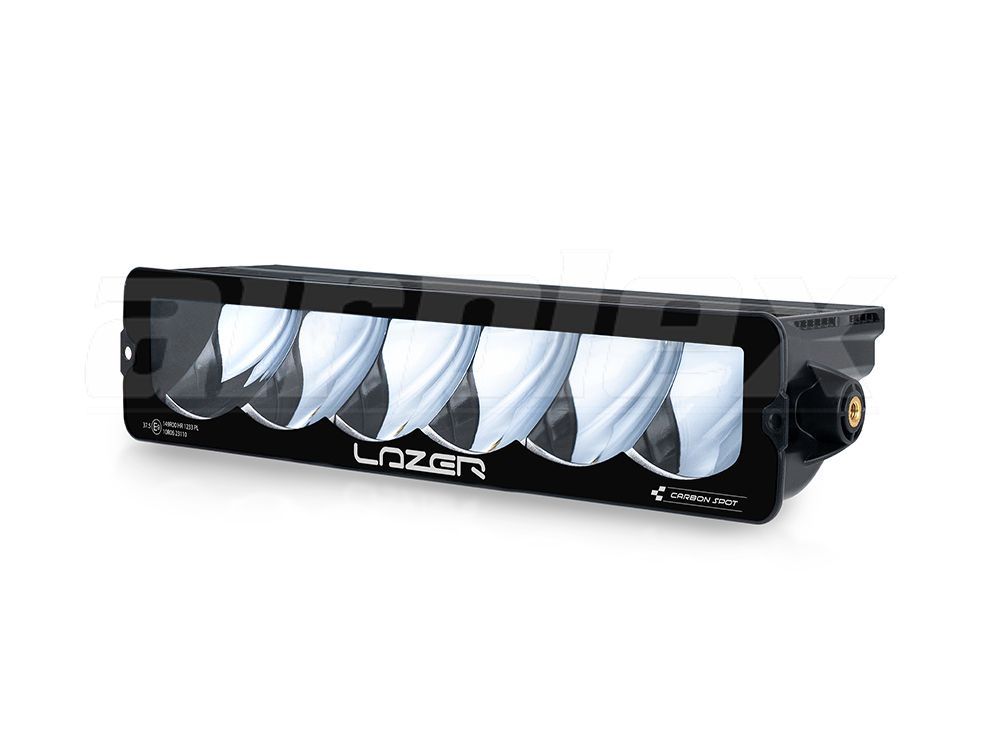

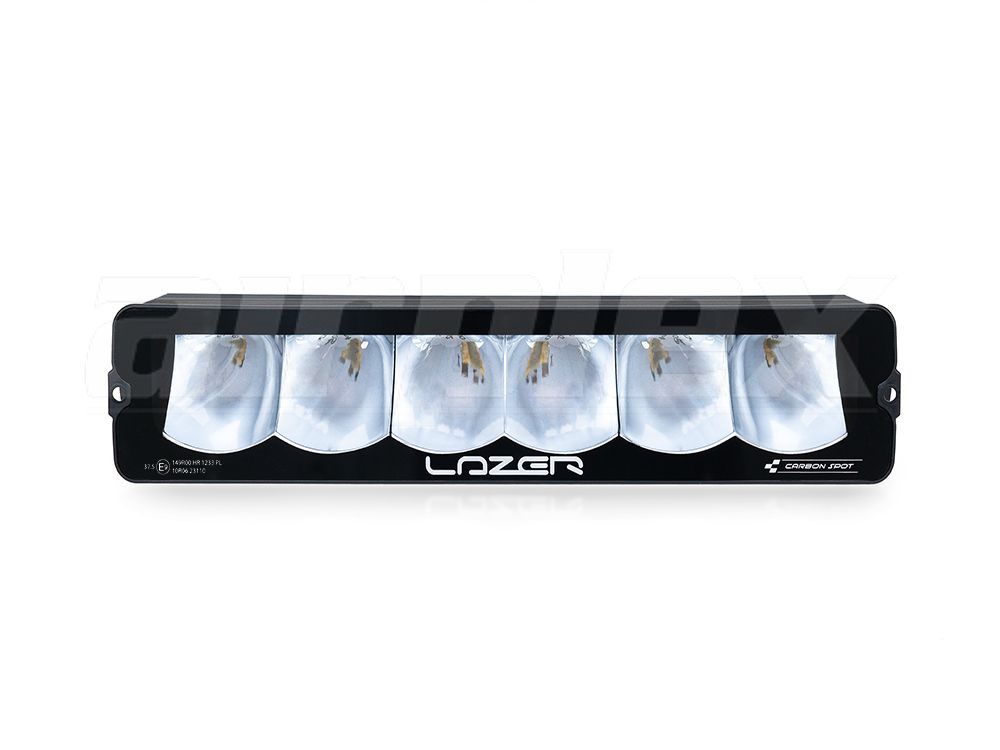

Carbon-6 SPOT (Gen3)
The 3rd generation of Carbon-6 LED driving lights represent years of continued development and testing at the very highest levels of professional rally and track motorsport. The re-design and re-engineering of the products delivers more light, less weight, and greater functionality, compared to previous iterations. Available as ‘SPOT’ or ‘DRIVE’ beam pattern, each light can operate in four modes:

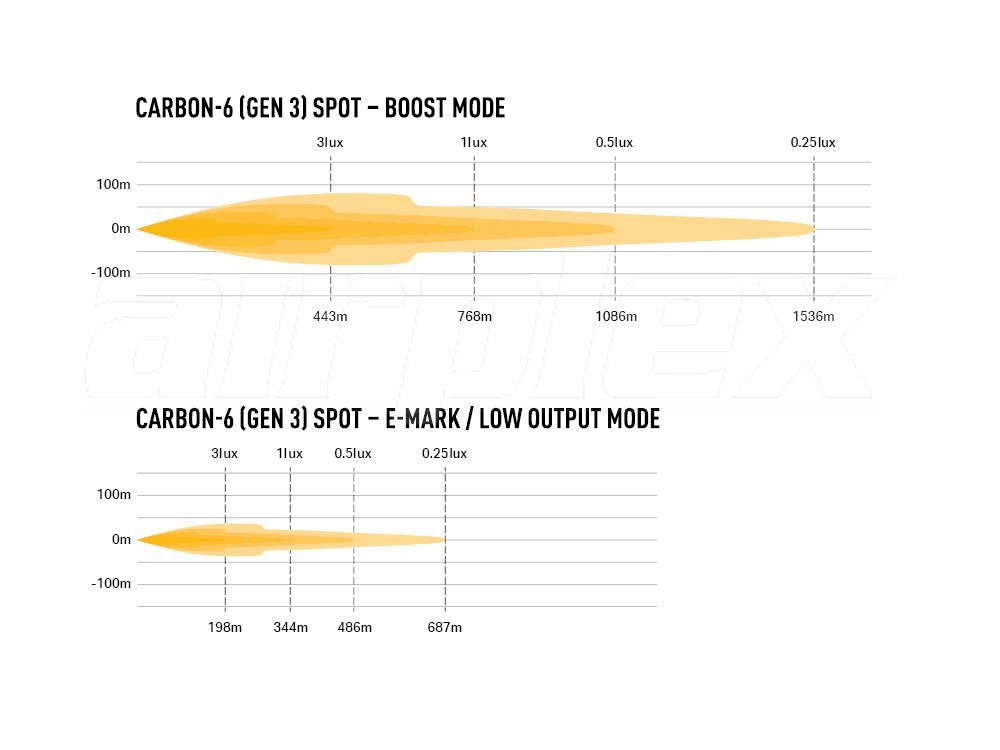

HIGH BEAM - BOOST MODE (100% output)
DIP/LOW BEAM (100% output)
HIGH BEAM - REDUCED OUTPUT (25% output)
DIP/LOW BEAM - REDUCDED OUTPUT (25% output)
Ultra-lightweight, PC-ABS material housing
Combination of high intensity ‘matrix’ LEDs

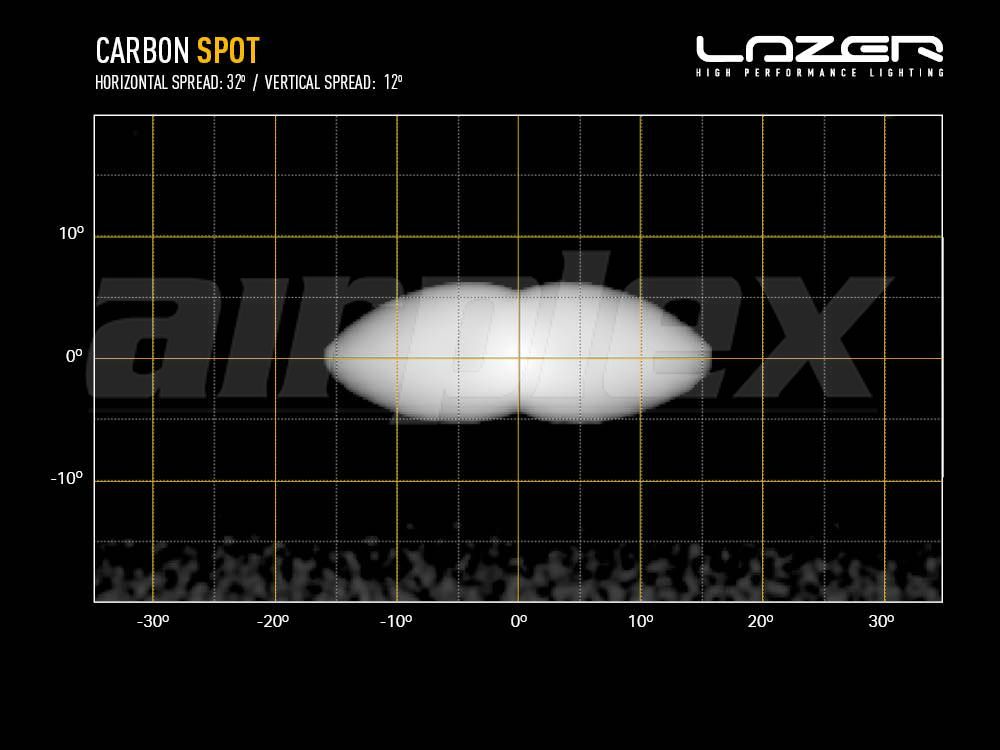

Available with Spot or Drive optics
Full-beam mode can be limited to operate with UNECE E-mark regulation limits
Secondary ‘dip/low’ beam mode
Additional lighting modes possible with variable PWM input signals
Active Power Management regulates current draw (max 7.3A) at low voltages
Carefully selected 5000K colour temperature maximises sharpness and definition
Included quick fit and release lens covers – Amber and Black
CAE-optimised heatsink requires minimal airflow to maintain 100% light output
Dynamic drive modulation preserves electronic components in adverse conditions
Low profile, edge-to-edge design for improved aerodynamic performance
Lamp features a built-in DT04-4P Deutsch Connector (gold plated solid DT contacts)
Vehicle side connector, plus 300mm cable length supplied with each lamp.
Compatible 2-lamp and 4-lamp wiring looms available
Rally mounting solutions available including carbon-fibre rally pods

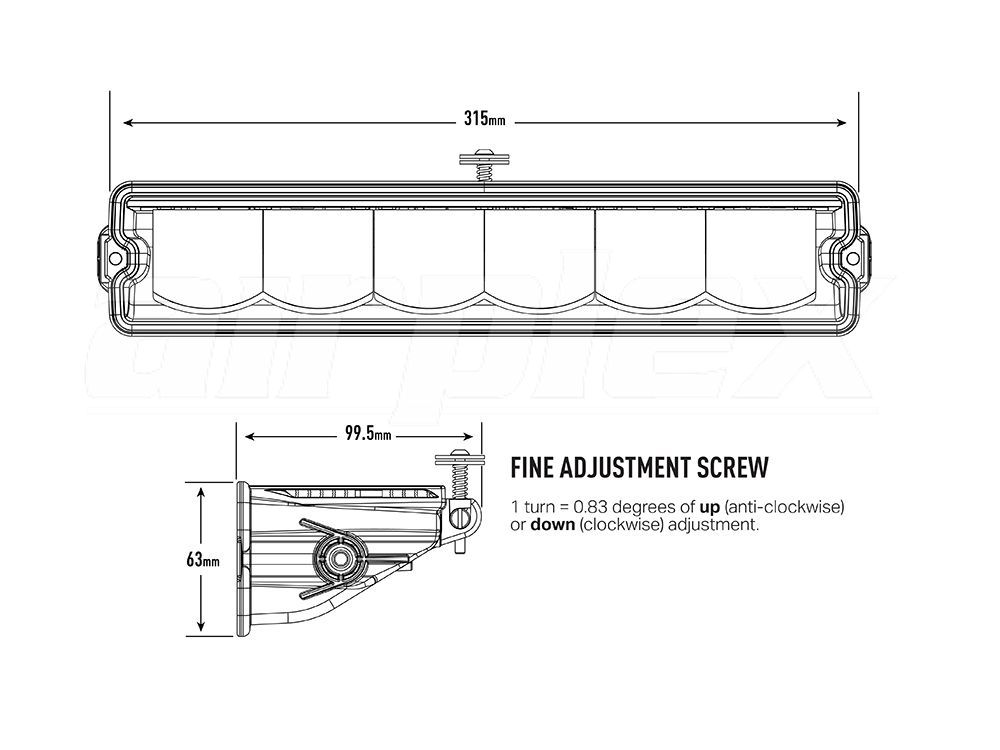

Fine tune adjustment mechanism on each light for accurate aiming (when used with compatible rally pods)
‘Unbreakable’ polycarbonate lens
IP68 watertight
5-year warranty
Designed & manufactured in Britain

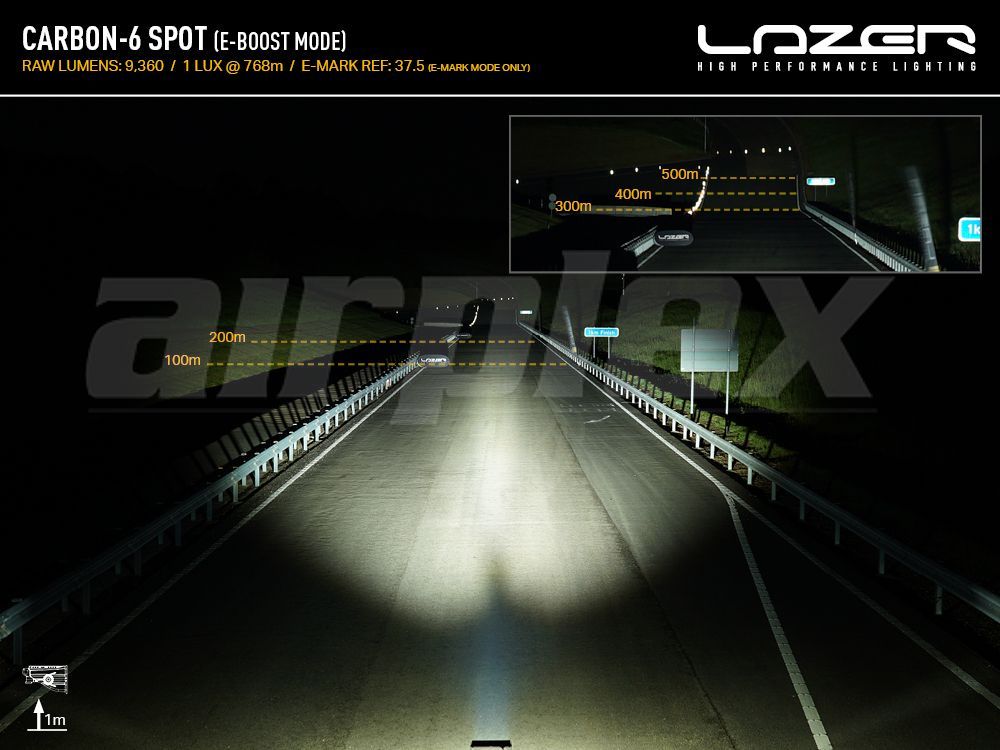

Total Luminous: 9360
Power: 85
Current Draw: 5.25amp
