LAZER LIGHTS Two-Lamp 4-Pin Deutsch DT Wiring Kit (12V)
Approx. lead time of 7 business days applies to this item
Description

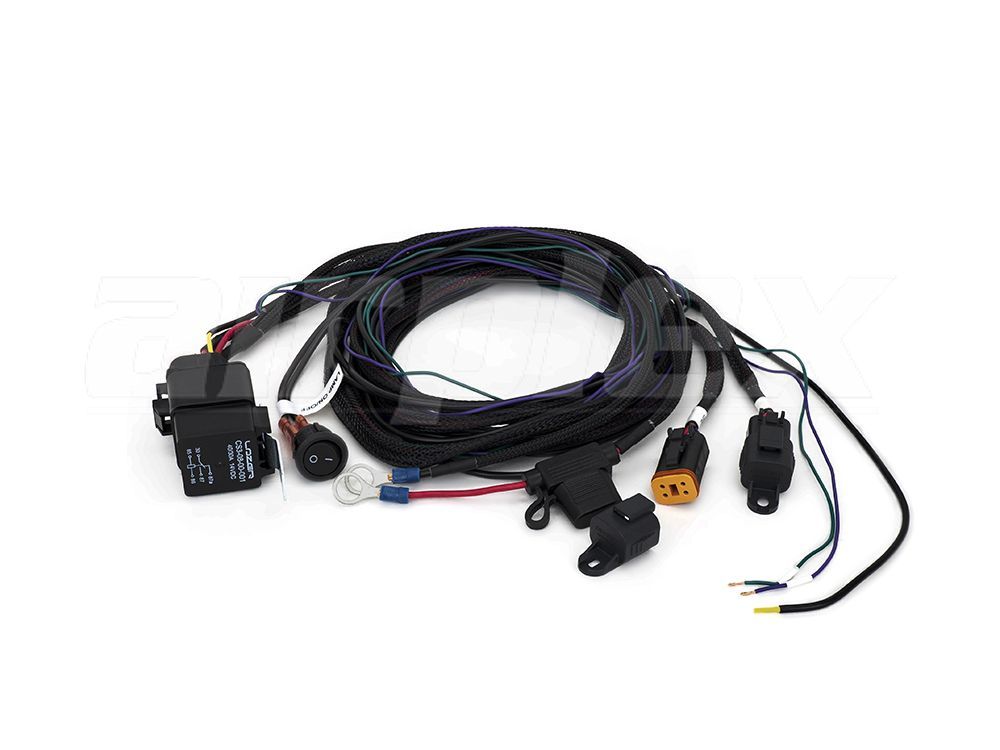

Two-Lamp Harness Kit (4-Pin, Deutsch DT, 12V)

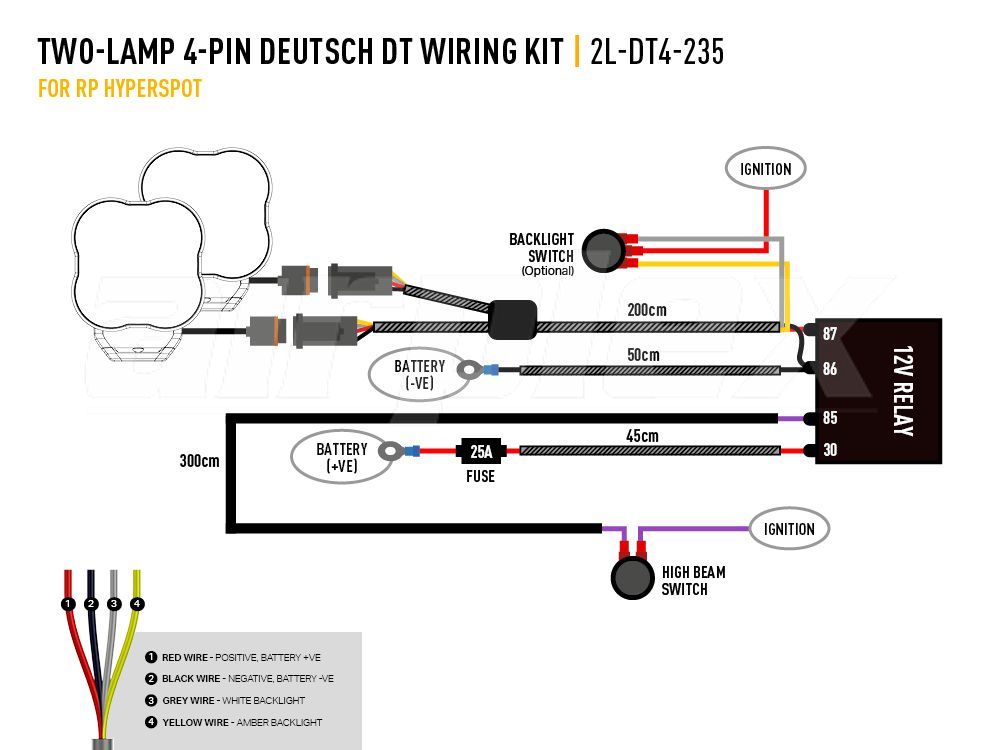

The ideal solution for wiring a pair of Lazer Carbon-6 (Gen3) / RP Hyperspot High Performance LED Driving Lights. The setup is quick, easy, and reliable with Deutsch DT06-4S connectors and no configuration procedures. The kit features a 12V relay, fuse, and battery terminal at one end, and 2.35m of flex on the lamp cable(s). The wiring kit allows for the operation of two lamps via an on/off switch which can be mounted inside your vehicle’s cockpit.
Compatiable with:
Carbon-2 (Spot / Drive)
Carbon-4 (Spot / Drive)
Carbon-6 (Spot / Drive)
RP Hyperspot
Utility-50 with Beacon
Utility-50 with Red Tail Light
Utility-80 HD with Variable Brightness
Two-Lamp Wiring Kit for Lazer High Performance LED Lights (see product text for compatibility)
2m cable lengths
Includes 12V relay and 25 amp fuse
Relay holder approved to IP53 when mounted in a vertical (upright) orientation
Deutsch DT06-4S connections
Includes on/off switch for independent operation of lights
Braided cable sections for added protection in engine bay
Total Luminous: N/A
Power: N/A
Current Draw: N/Aamp
