LAZER LIGHTS Four-Lamp 4-Pin Deutsch DT Wiring Kit, with DT04-08 Connector (12V)
Approx. lead time of 7 business days applies to this item
Description

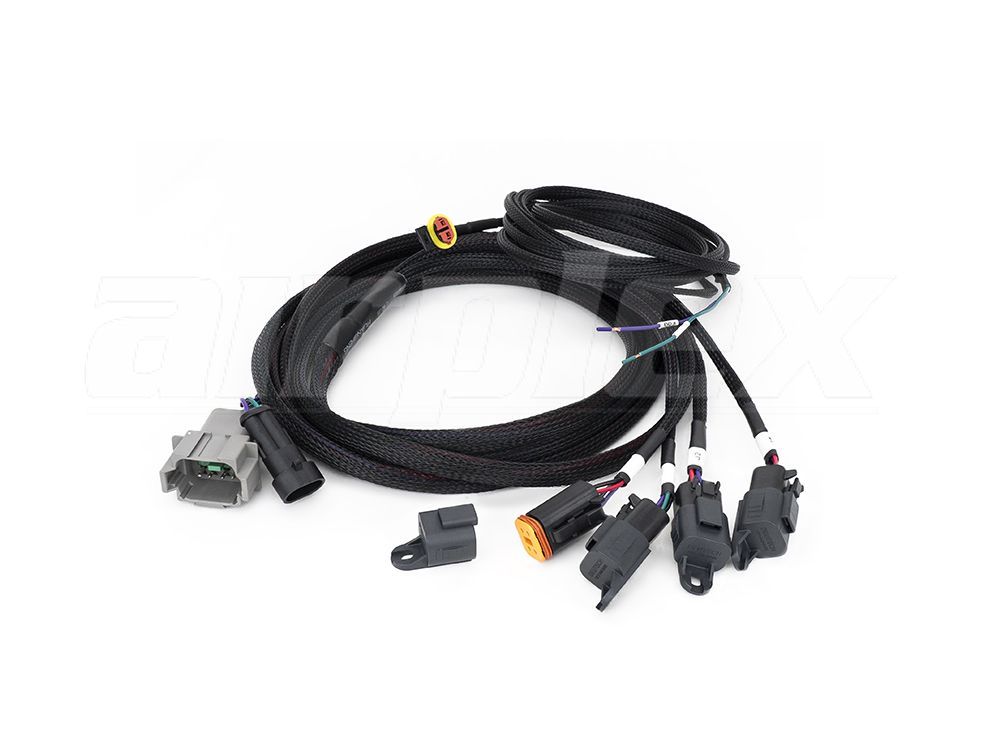

Four-Lamp Harness Kit with DT04-08 Connector (4-Pin, Deutsch DT, 12V)
The ideal solution for wiring 4x Lazer Carbon-6 (Gen3) High Performance LED Driving Lights, where the vehicle side connection is compatible with an DT04-08 Deutsch Connector. The resulting setup is quick, easy, and reliable with Deutsch DT06-4S lamp connectors and no configuration procedures. The kit features 3.2m of flex on the lamp cable(s) to the 8-pin DT04-08 Connector (compatible with Citroen C3 rally cars as an example).

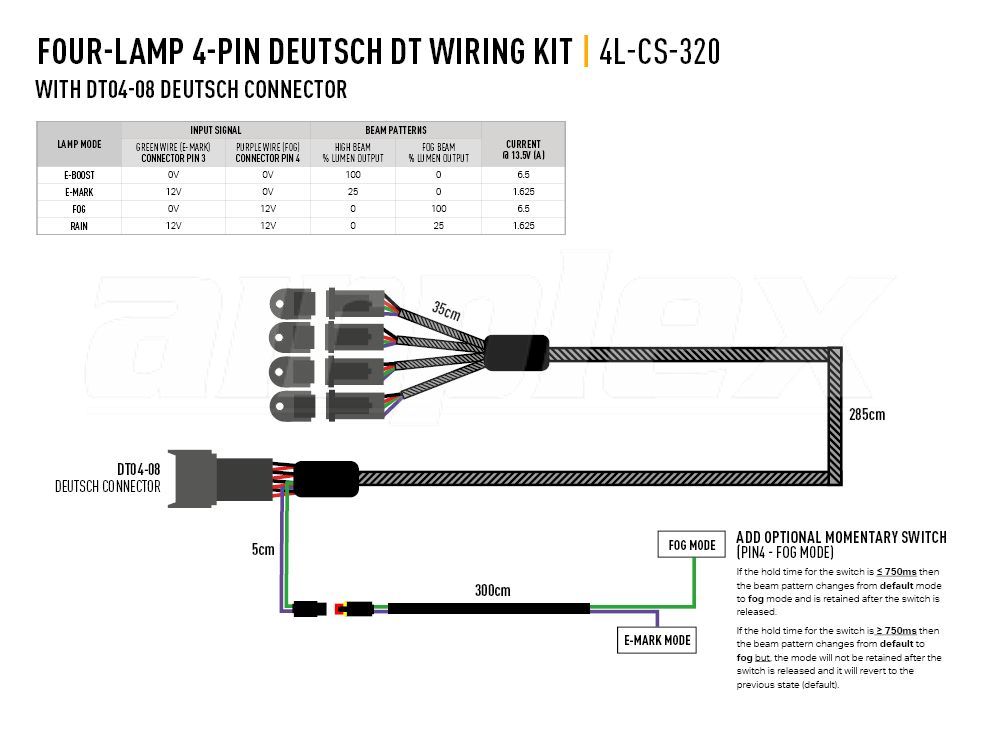

Additional signal wires from the DT04-08 Connector are included for operation of lamps’ in either: ‘Fog’ mode (purple wire), or ‘E-mark’ mode (green wire).
All Carbon-6 (Gen3) LED Driving Lights feature a corresponding built-in DT04-4P Deutsch Connector (with gold plated solid DT contacts).
Compatiable with:
- Carbon-6 DRIVE (Gen3)
- Carbon-6 SPOT (Gen3)
Four-Lamp Wiring Kit for Carbon-6 (Gen3) LED spotlights / 4-Way Rally Pod System
3.2m cable lengths
DT04-08 Deutsch connections
Additional extension cable for Fog and E-Mark modes
Braided cable sections for added protection in engine bay
Total Luminous: N/A
Power: N/A
Current Draw: N/Aamp
