WIRING LOOM DRIVING LIGHT PATCH - HIGH BEAM Toyota 200 Series with factory LED headlights

Description

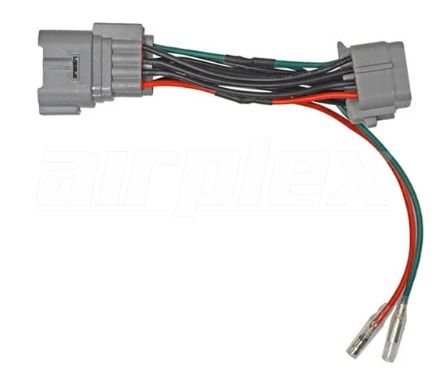

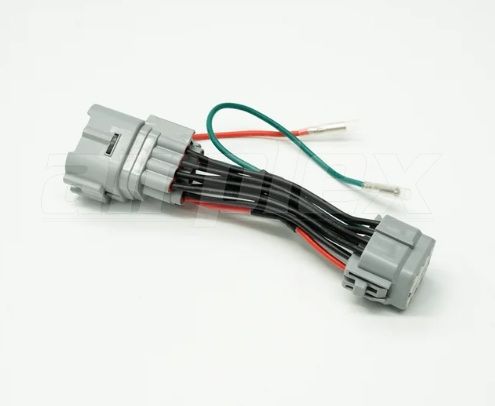

These connectors are suitable for use with the Toyota 200 Series 2016 onwards models, fitted with factory LED headlights. They provide an easy plug and play integration into the existing factory headlight connector, that are located on the lower back of each side of the vehicle’s headlight assemblies.

The headlight patch harness utilises the factory connection point on the lower back of the headlight assembly, you no longer need to splice a wire into the factory harness for auxiliary driving lights, simply:

Remove the existing factory eleven pin connector from the lower back of the headlight (left or right side). Under the front wheel arch trim, there is a locking tab that must be depressed while removing the connector

Fit the corresponding new connector to the factory connector that has just been removed
Fit the remaining new connector to the original factory connector that is affixed to the headlight assembly

Wiring: The red wire from the vehicles high beam circuit is to be connected to the corresponding red wire from the dedicated Lightforce Driving Light Wiring Harness. This is used to trigger the relay via an independent switch to activate the driving lights.

Both the red and green wires must be connected.

The wire gauge is 18AWG

The wire length to the bullet connectors is 160mm
