WIRING LOOM DRIVING LIGHT PATCH - HIGH BEAM ISUZU DMAX 3rd Gen & MAZDA BT50 3rd Gen

Description

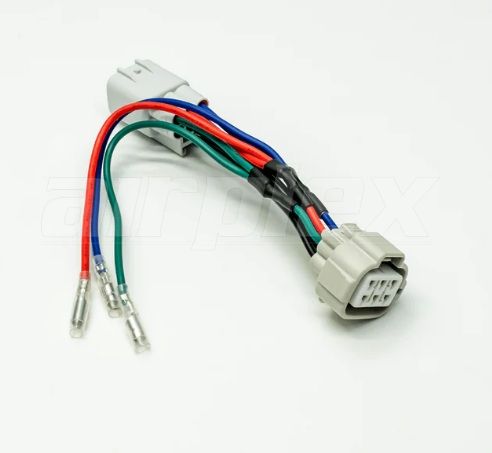

Suitable for use with the Isuzu D-Max 3rd Gen (all models with LED headlights) and Mazda BT50 3rd Gen fitted with LED headlights allowing for easy plug and play integration into the existing factory headlight connector that are located on the back of each side of the vehicle’s headlight assemblies.

It uses the factory connection point on the back of the headlight assembly of your DMax 3rd Gen or Mazda BT50 3rd Gen. You no longer need to put a hole in the dust cover or splice a wire into the factory harness for auxiliary driving lights.

Simply:
Remove the existing factory 6 pin connector from the back of the headlight (left or right side) there is a locking tab that must be depressed while removing the connector.
Fit the corresponding new connector to the factory connector that has just been removed.
Fit the remaining new connector to the original factory connector affixed to the headlight assembly.
Then connect the corresponding connectors from any one of our listed compatible wiring harnesses.

WIRING
Red wire is from the vehicles positive high beam circuit and is used to trigger the positive signal on an auxiliary relay for driving lights.
Green wire is from the vehicles negative circuit and is used to trigger the negative signal on an auxiliary relay for driving lights.
Blue wire is from the vehicles positive low beam headlight, for use with positioning lights (fitment optional) or can be used as the pickup point for the switch illumination.
